• Cross-section – existing

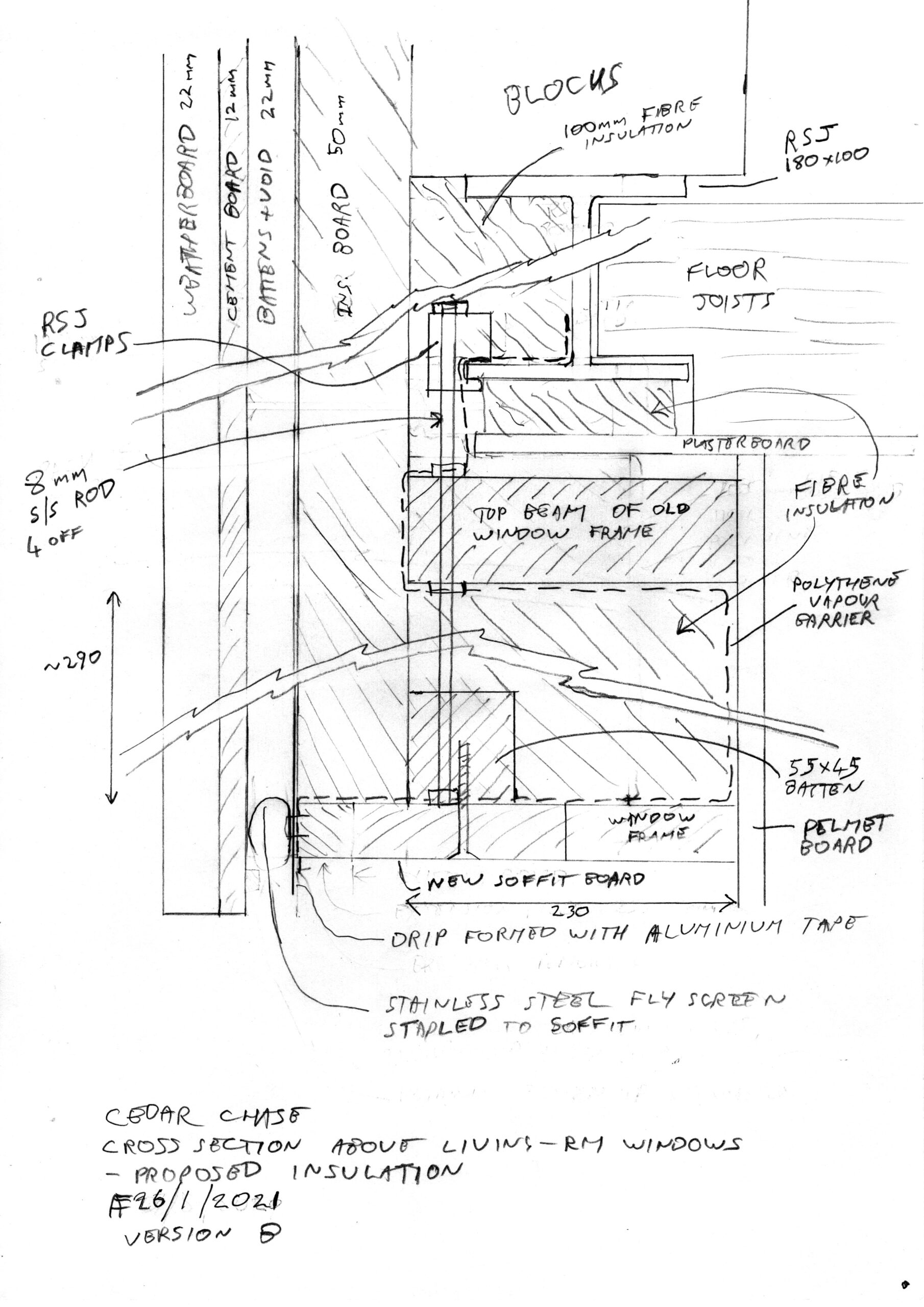

  • Cross-section – proposed

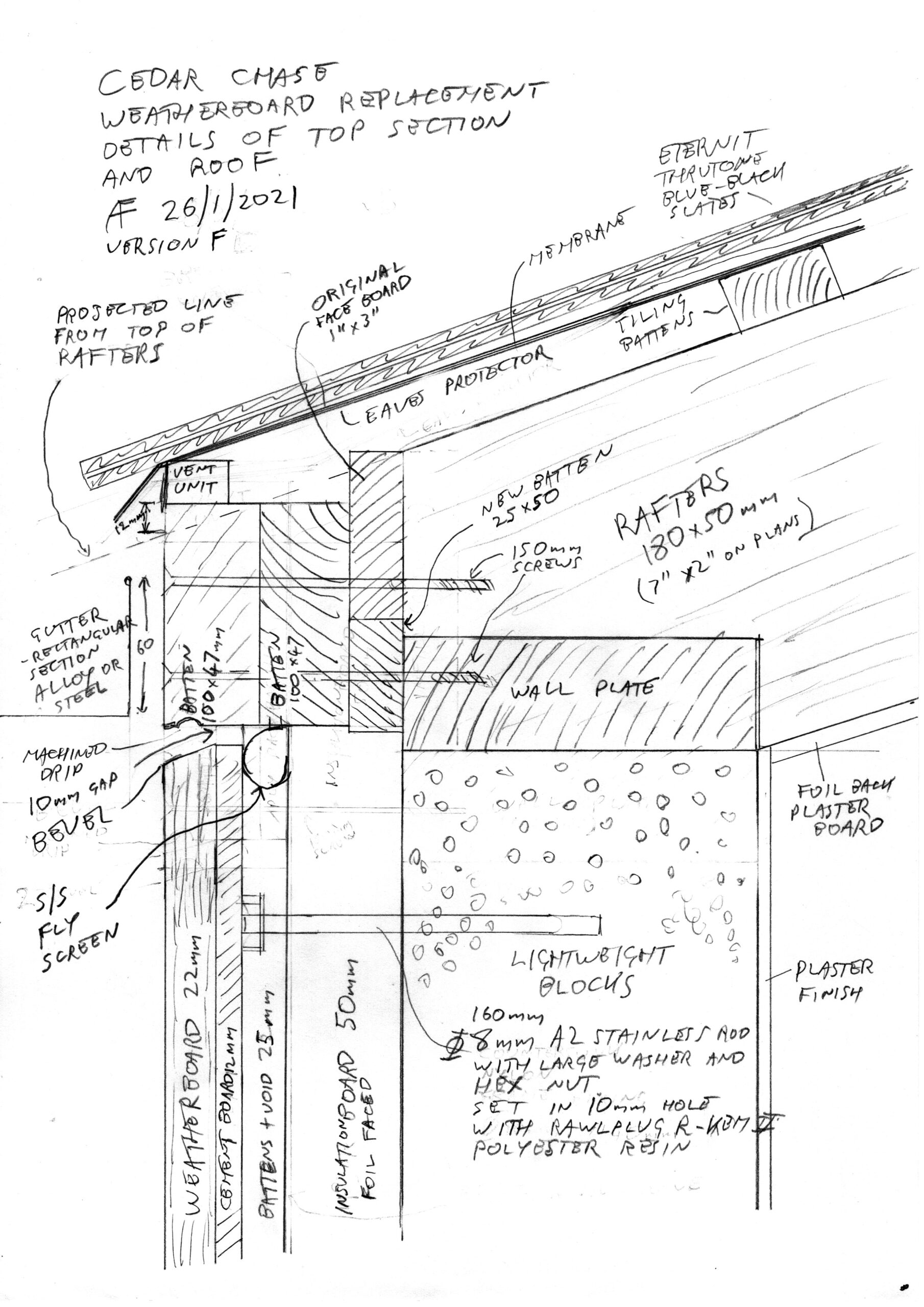

  • Cross-section – top

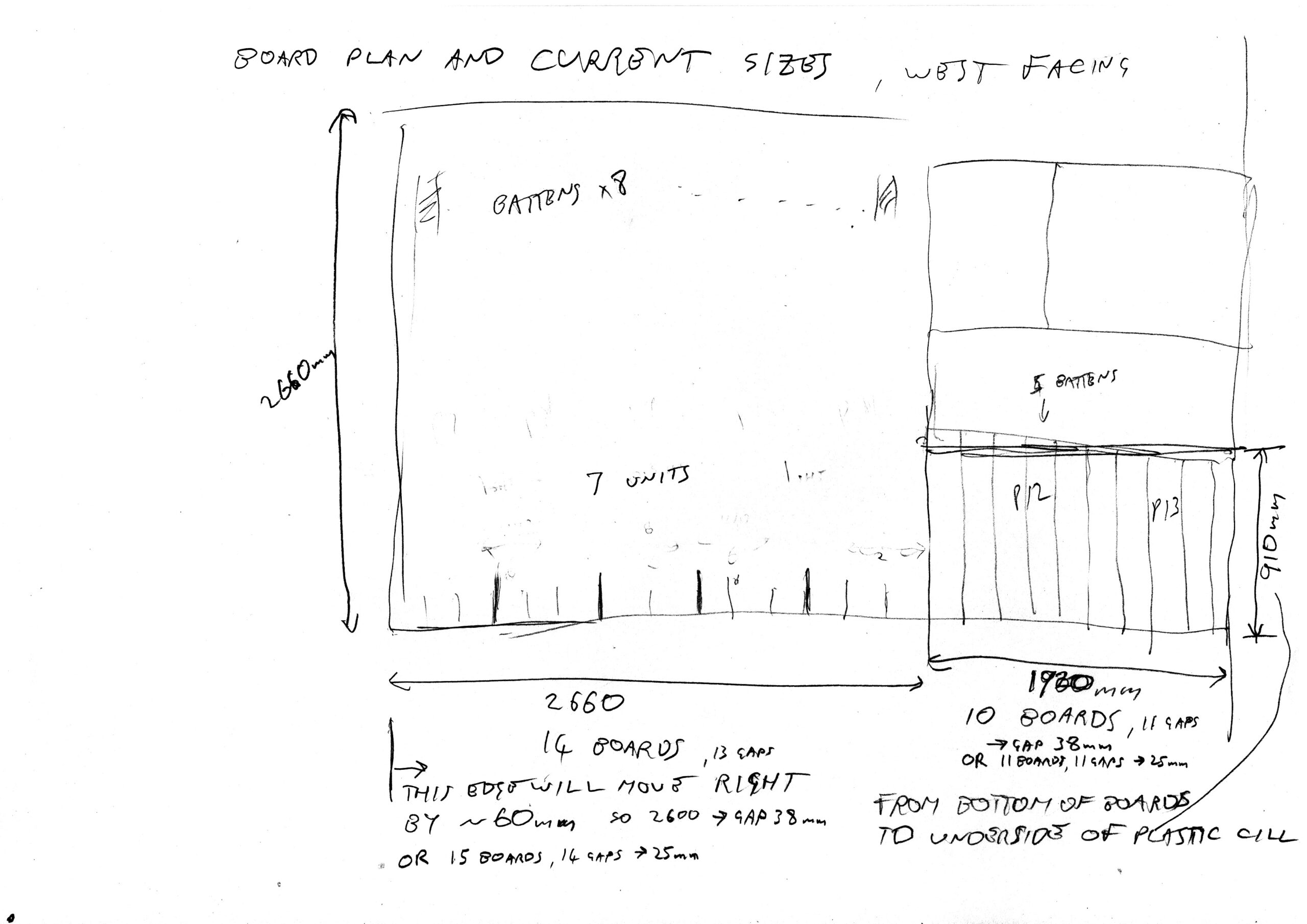

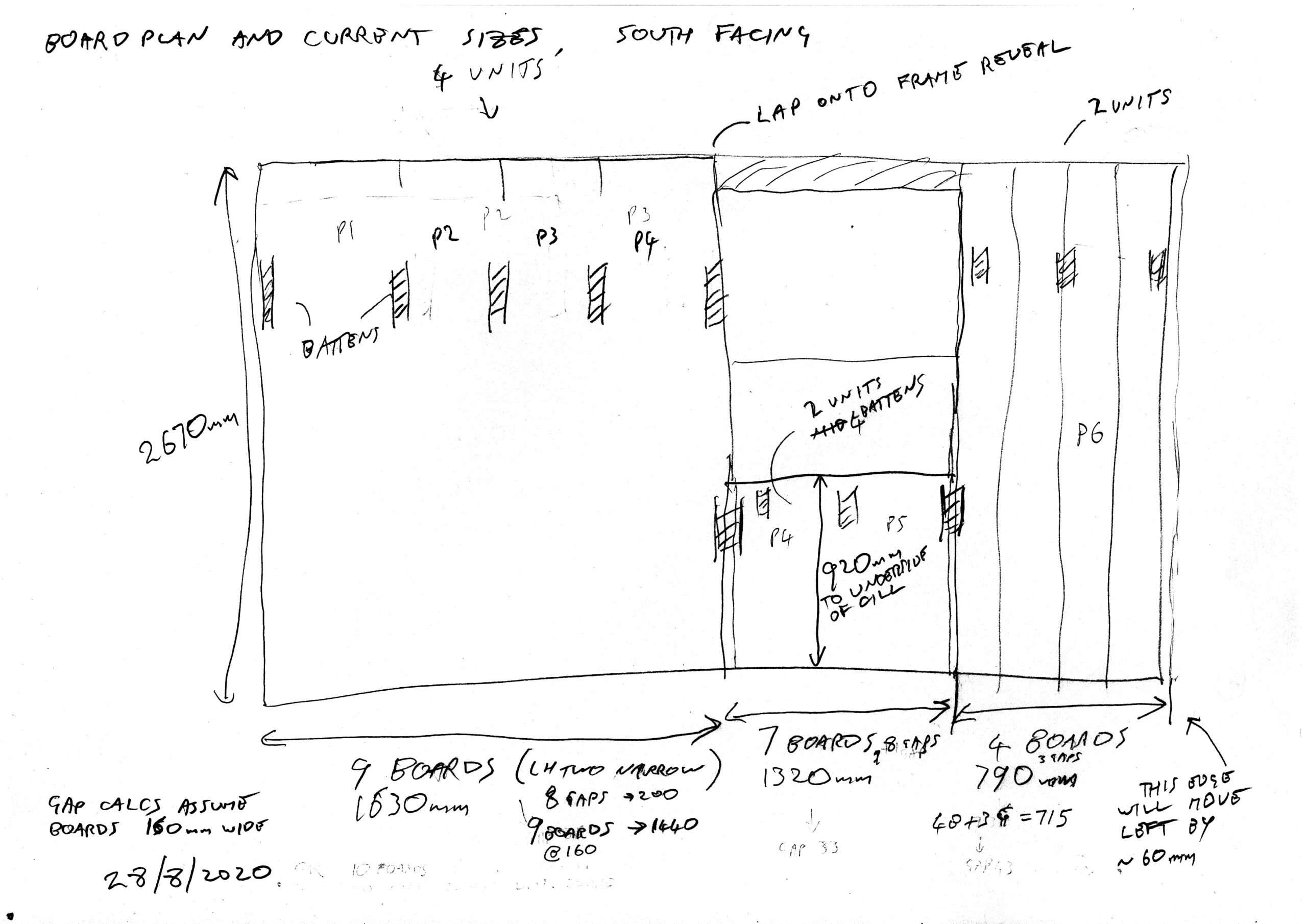

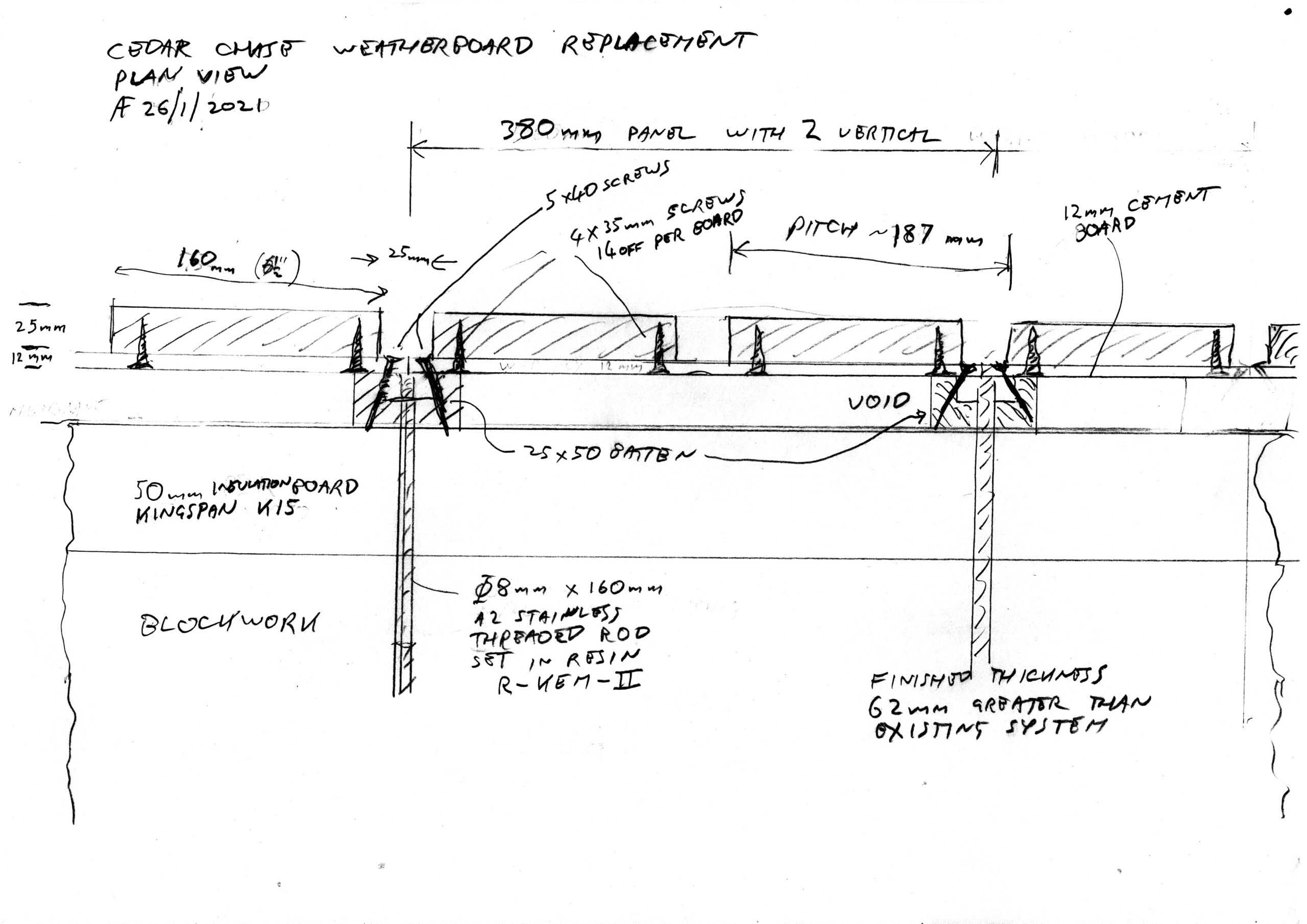

  • Plan view of boards

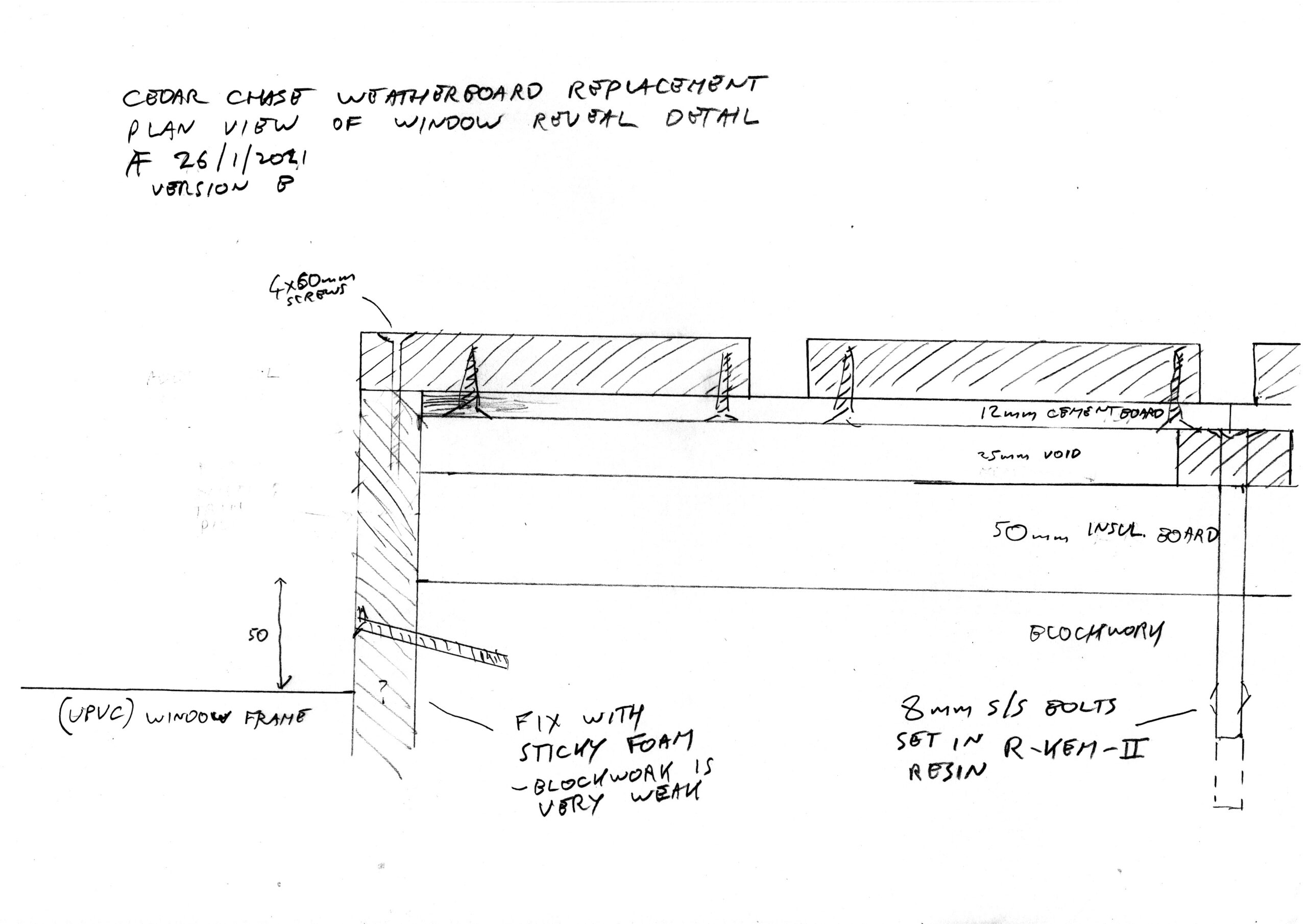

  • Window reveal detail

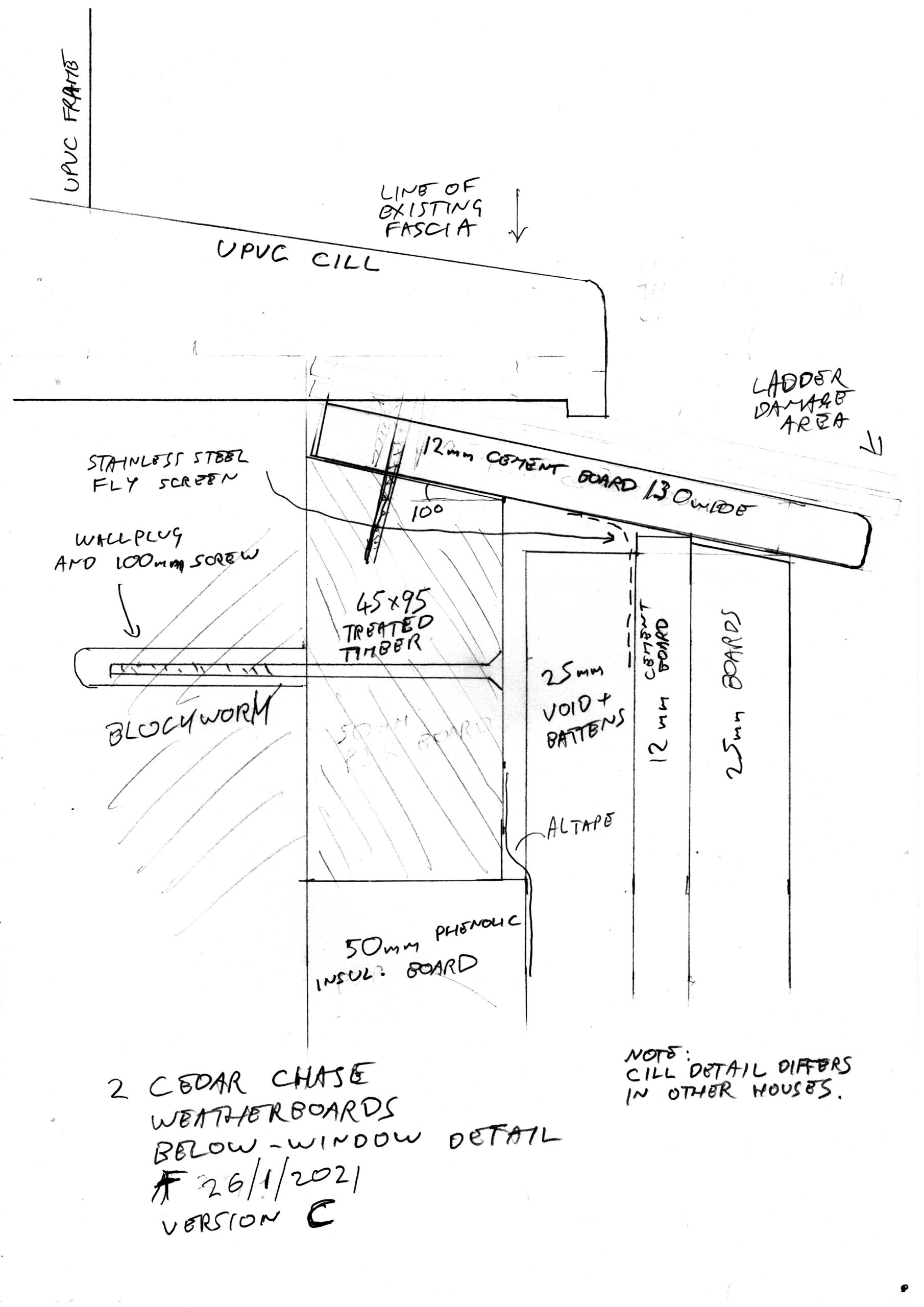

  • Window cill extension

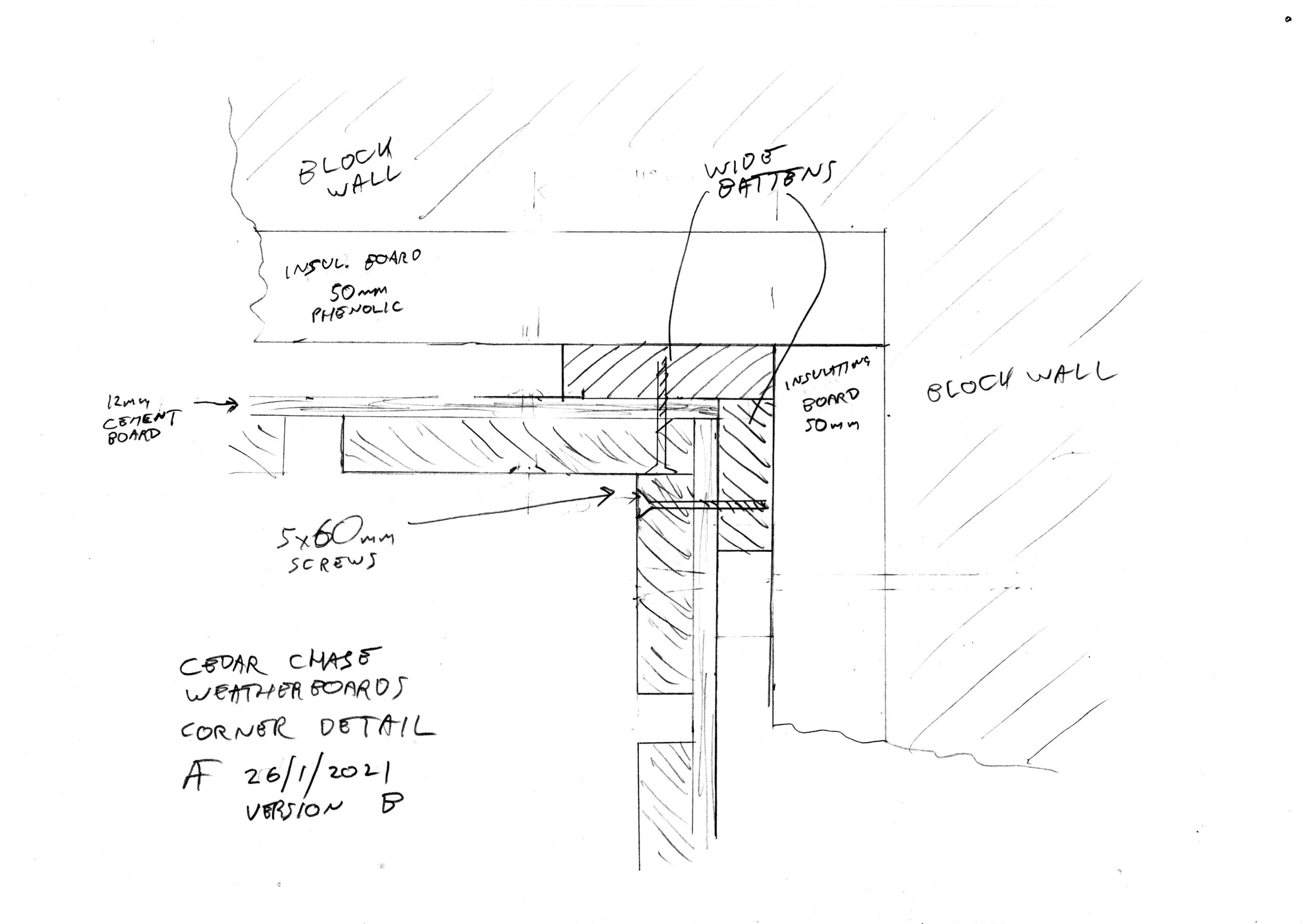

  • Inner corner detail

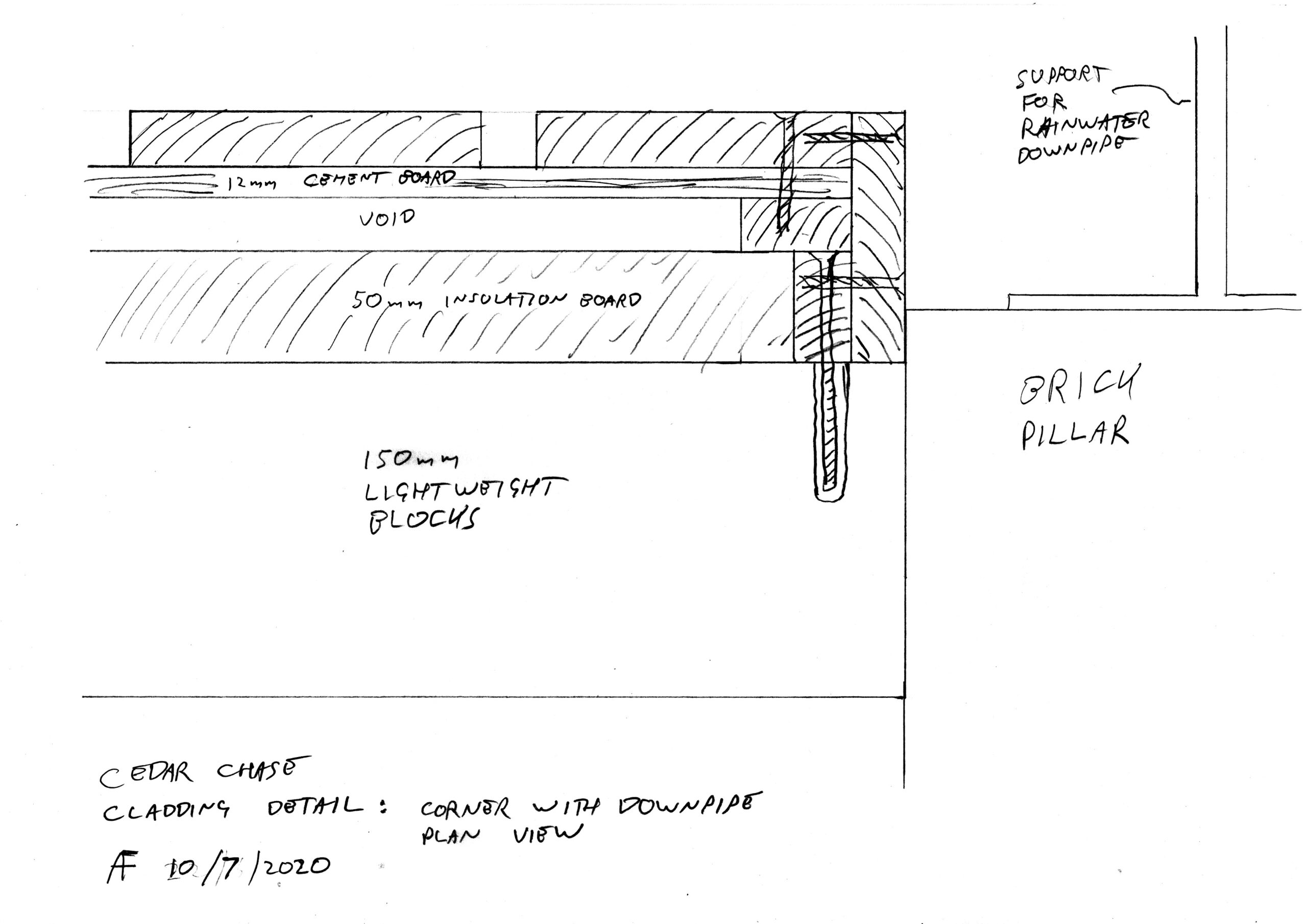

  • End corner detail

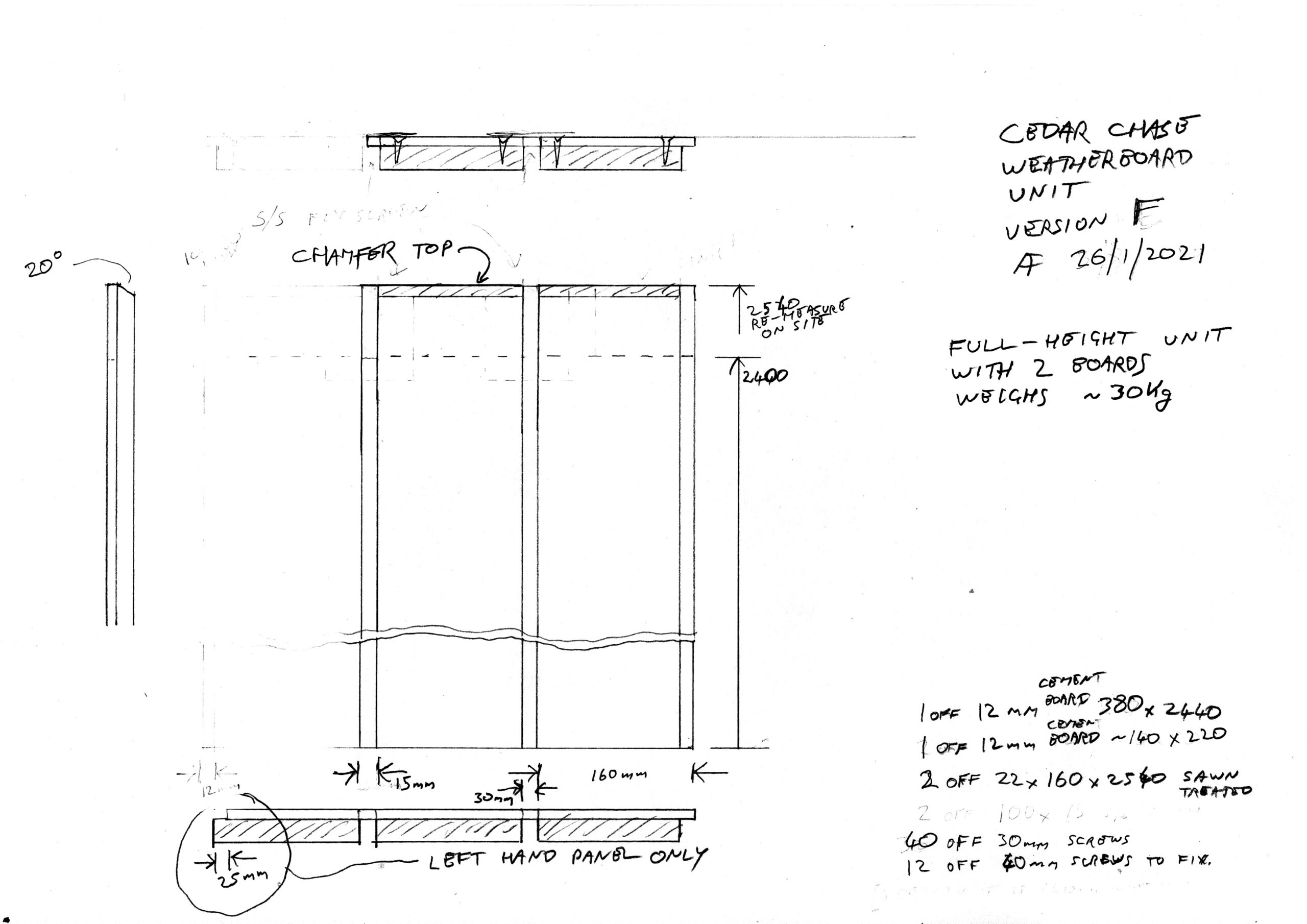

  • Weatherboard panel

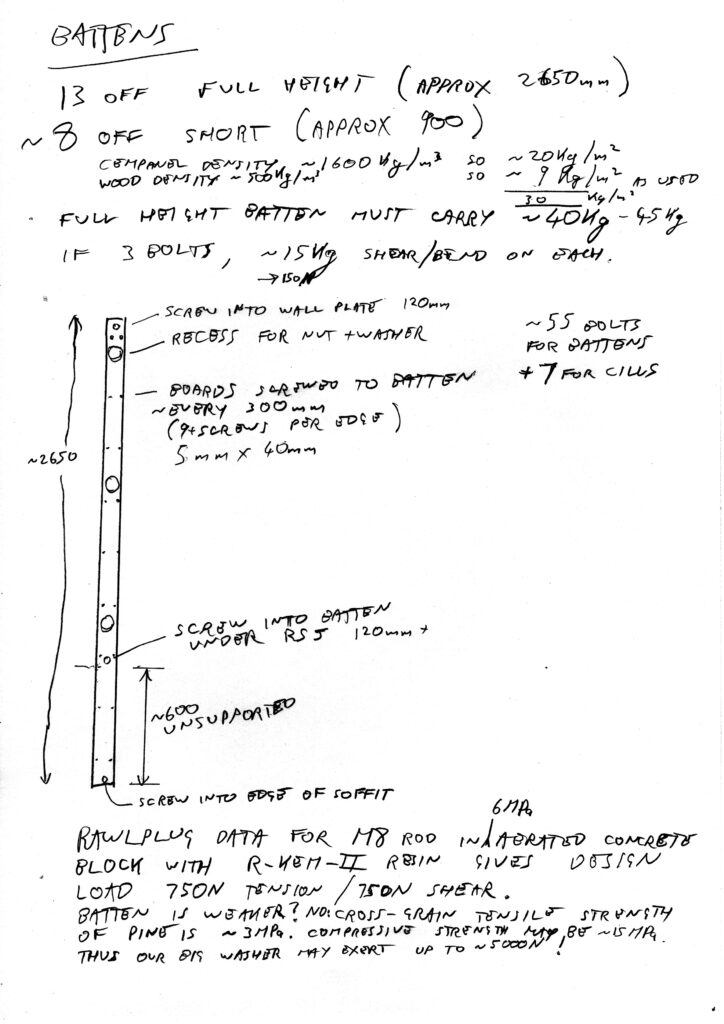

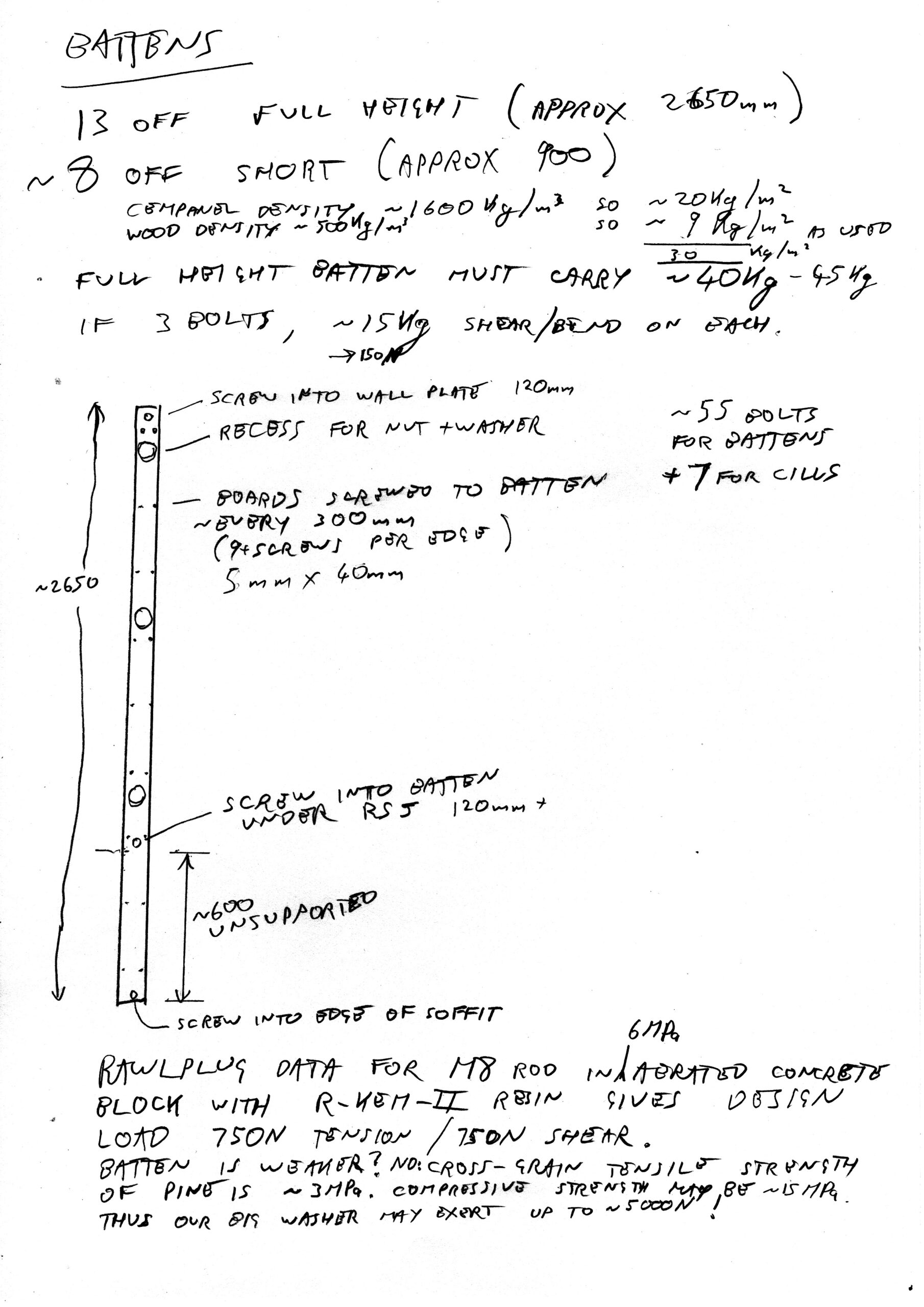

  • Battens
  • Above living room window
  • Above kitchen window

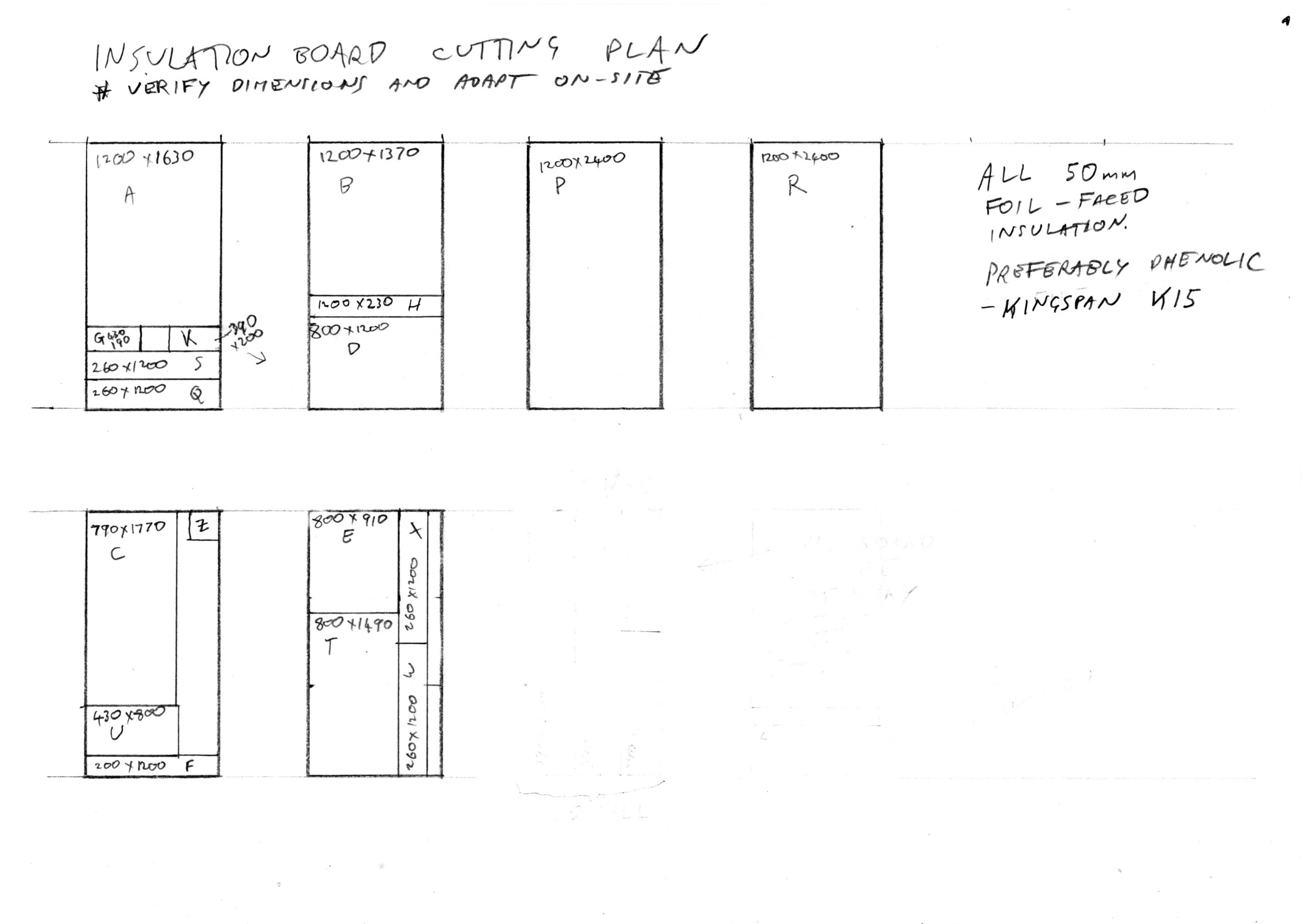

  • Insulation cutting plan

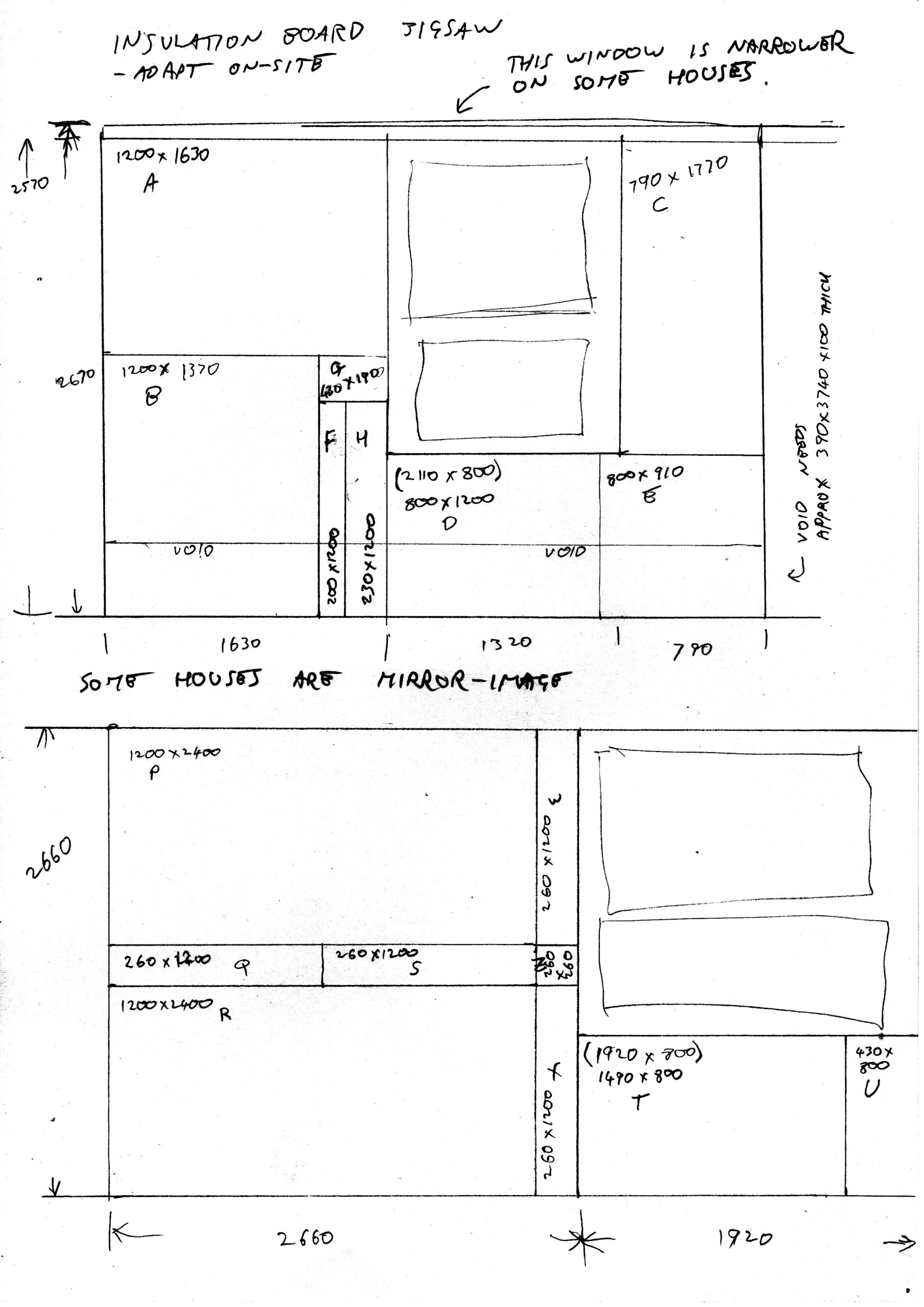

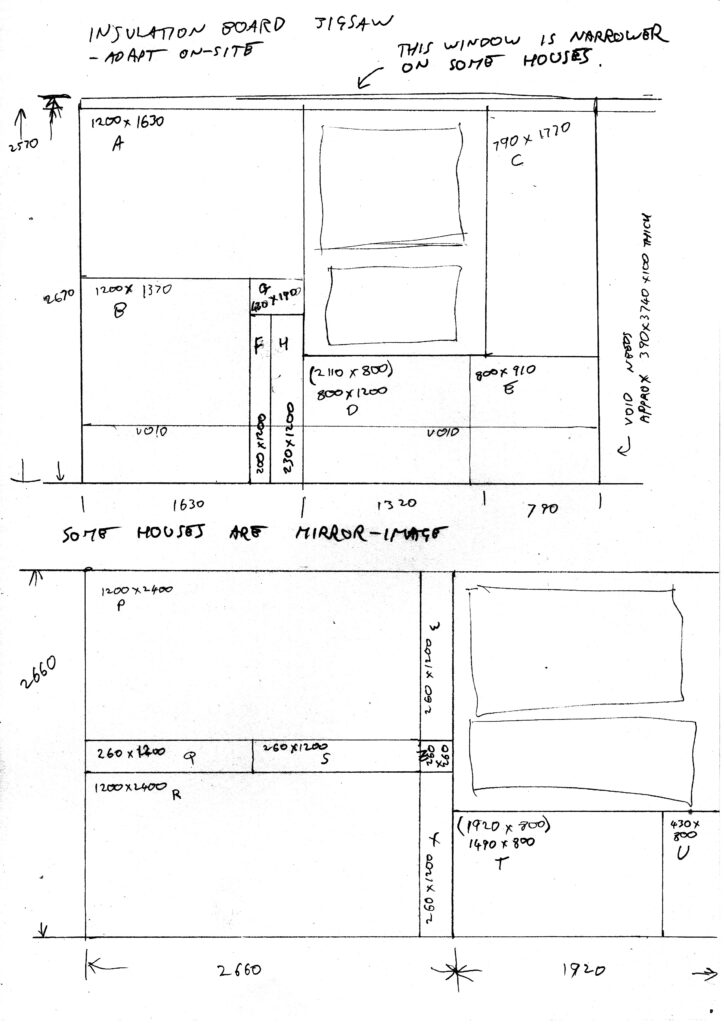

  • Insulation jigsaw

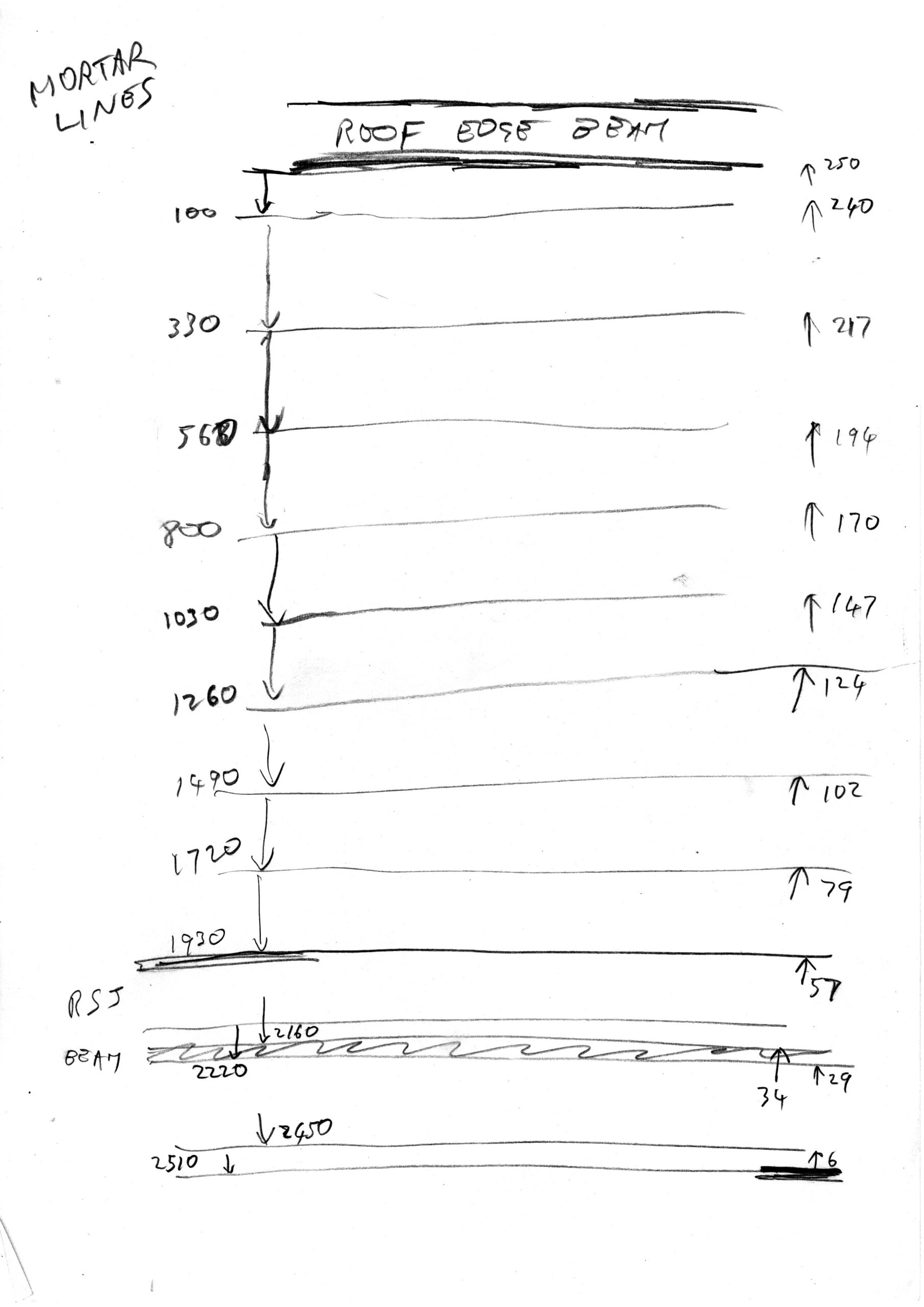

  • Mortar lines

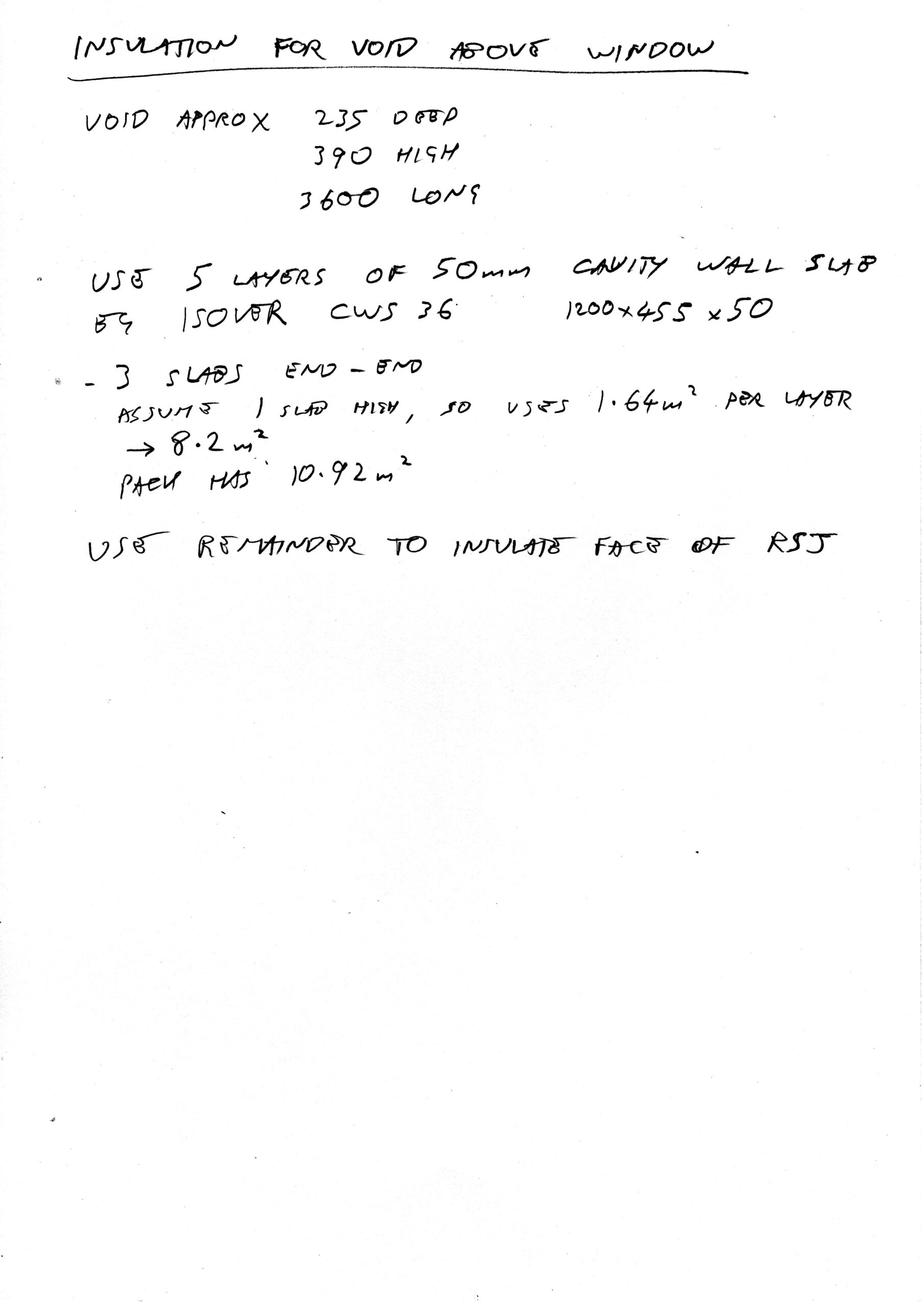

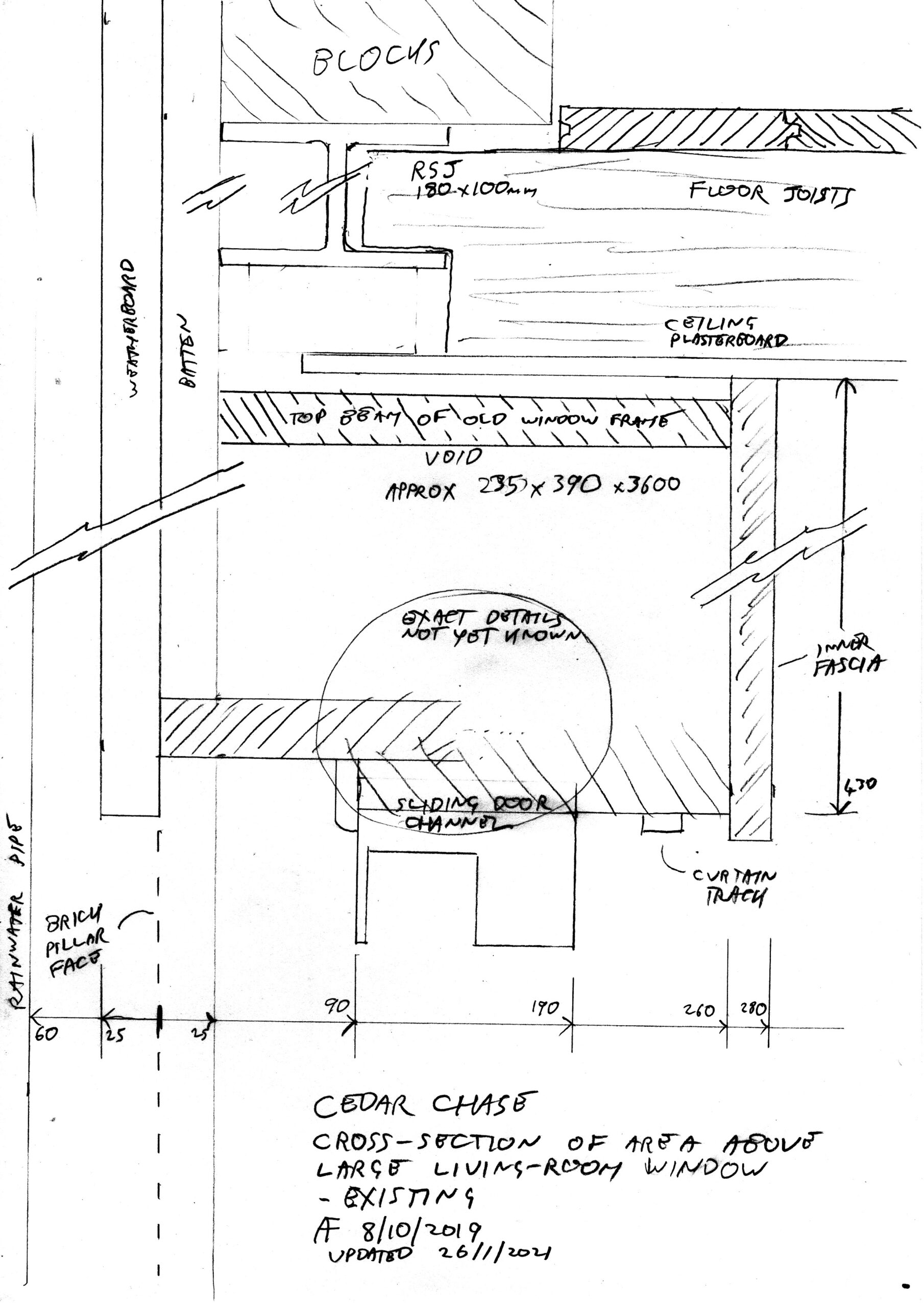

  • Void above living-room window
